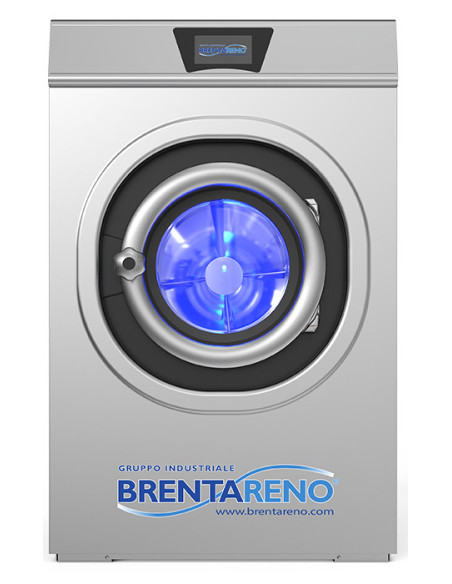

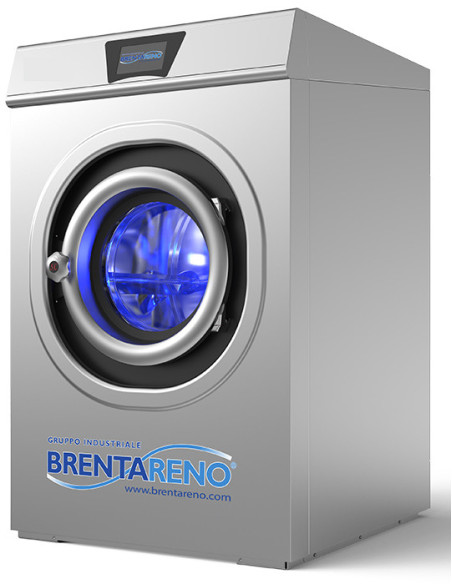

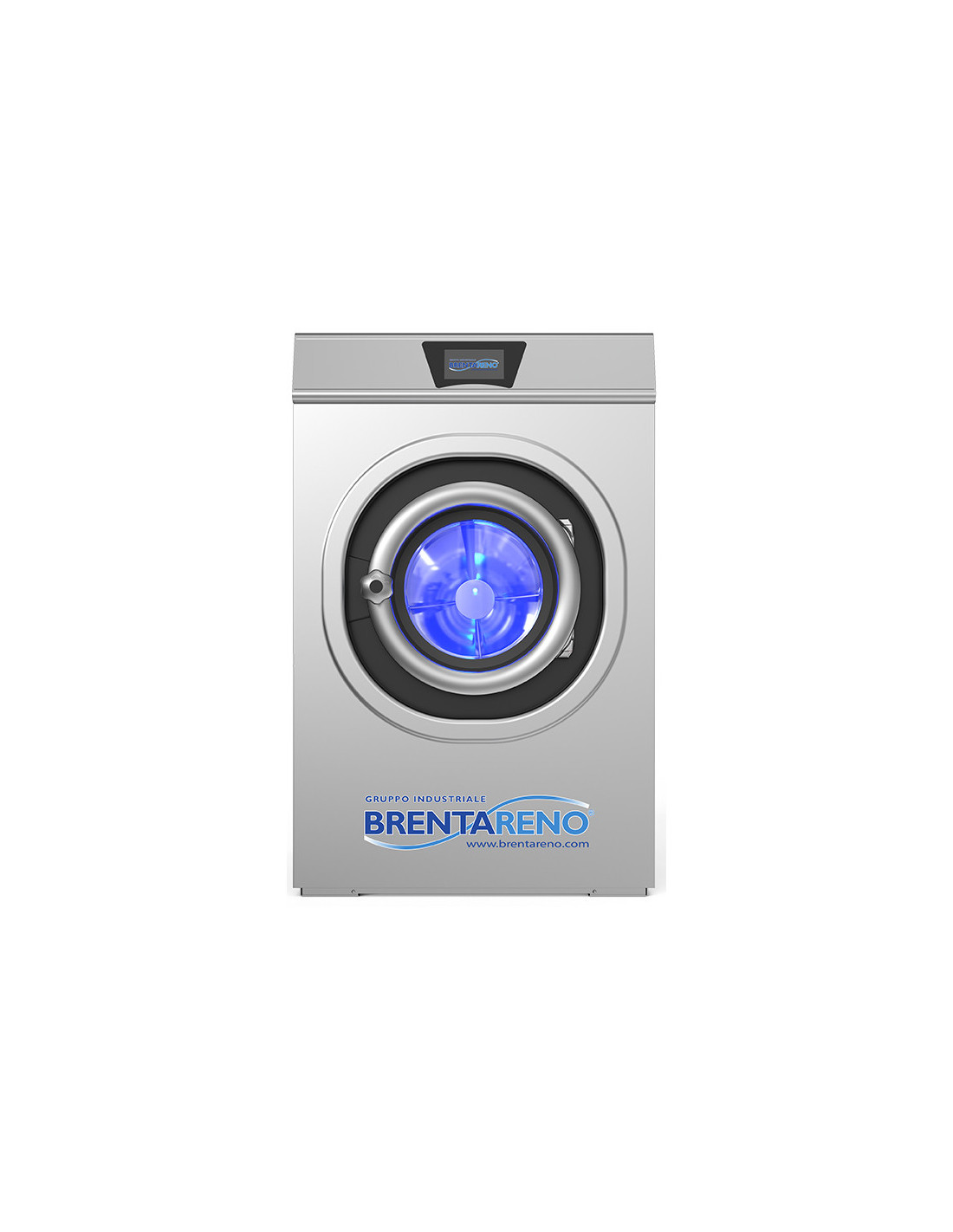

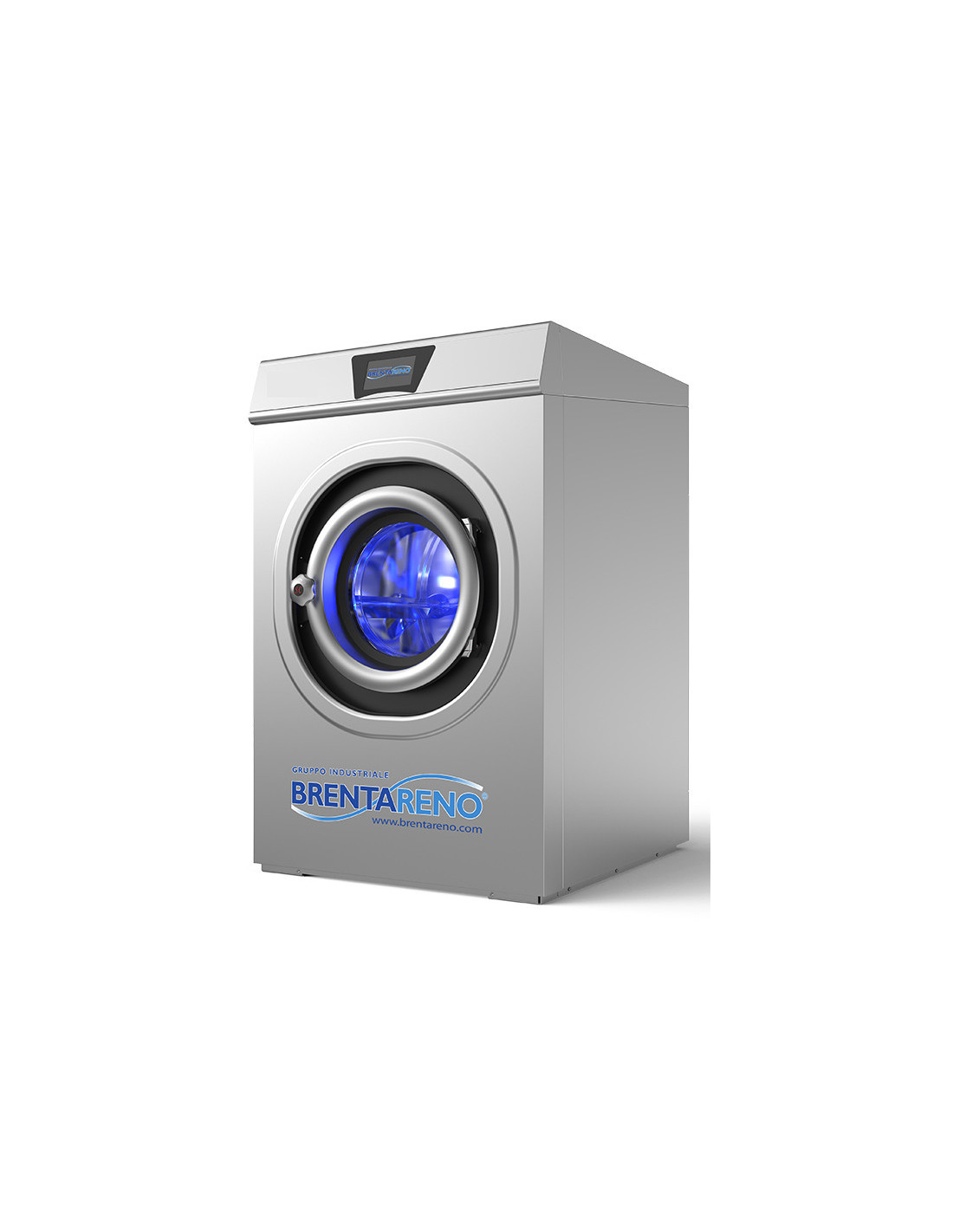

Super Spin Washing Machines CBH Series
Super Spin Washing Machines CBH Series
Super Spin Washing Machines CBH Series
Super Spin Washing Machines CBH Series

Super Spin Washing Machines CBH Series

INDUSTRIAL series Washer-extractors are suitable for hospitals, community, labour camps, army, prisons, hotels, restaurants, textile industry as well as individual washing-dyeing industry and any other facility with relevant volumes of garments and linen to wash. The INDUSTRIAL series Washer-extractors are used to wash cotton, wool, synthetic fibers and any other kind of fabric.



Features:

  • Programmable computer control system with user friendly design, multiple languages and large LCD screen (Button panel or touch panel can be chosen by the user), with washing programs clearly showing and easy to use. Manual control system is available as well
  • Patent design of the bearing sealing technology which supports the drum made of AISI304 stainless steel and of the high strength outer cylinder. The new high-strength bearingseat, with oversized bearing and high-accuracy short axle, ensure that machine’s lifespan is prolonged also during overload situation
  • The added weight at the front of the suspended element, is counterbalanced from the shock-absorber system combined by springs and bearings, so to reach the perfect balancing of the suspended object. The effective vibration-reducing rate can reach 98% to 100%,no special foundation or fixing system needed for the machine installation
  • The variable frequency drive (VFD) with LS inverters and high-quality TIMKEN bearings enable quiet operation. The main shaft sealing material, the stainless steel panel and the unique material of the soap supply system are effective against high temperatures and strong acids. The door locking device ensures safety, while the larger diameter loading door and intuitive design allow for easy loading and unloading, thus reducing labor powerdesign allow for easy loading and

UV sterilization

Multilingual computer touch

Predisposition for connection of external dispensers

Quality bearings

Possibility of installing a built-in coin acceptor

TEHNICAL PARAMETERS

ModelUnitCBH 12CBH 16
Capacitykg1216
Drum volumelt116148
Drum SizemmØ 635×365Ø 635×465
Wash Speedrpm3232
Mid Speedrpm420420
Spin Speedmm10001000
G FactorG363363
Motor PowerkW1.859
HeatingkW2×43×4
InverterkW2.22.2
Electric connection400V – III + N + T400V – III + N + T
HeatingHot water/electricHot water/electric
Water Diameter inletDN3/4″3/4″
Drain DiameterInch3”3”
Dimensionsmm839 x 962 x 1359839 x 1062 x 1359
Net Weightkg312350
Packagingmm989 x 1.112 x 1.509989 x 1.212 x 1.509
Gross weightkg342380
ModelUnitCBH 22CBH 25
Capacitykg2225
Drum volumeltØ 740×450237
Drum SizemmØ 635×365Ø 740×550
Wash Speedrpm3232
Mid Speedrpm420420
Spin Speedmm900900
G FactorG343343
Motor PowerkW1.859
HeatingkW4×45×4
InverterkW3.73.7
Electric connection400V – III + N + T400V – III + N + T
HeatingHot water/electricHot water/electric
Water Diameter inletDN3/4″3/4″
Drain DiameterInch3”3”
Dimensionsmm939 x 1089 x 1384939 x 1189 x1384
Net Weightkg456530
Packagingmm1.089 x 1.239 x 15341.089 x 1.339 x1534
Gross weightkg486560
