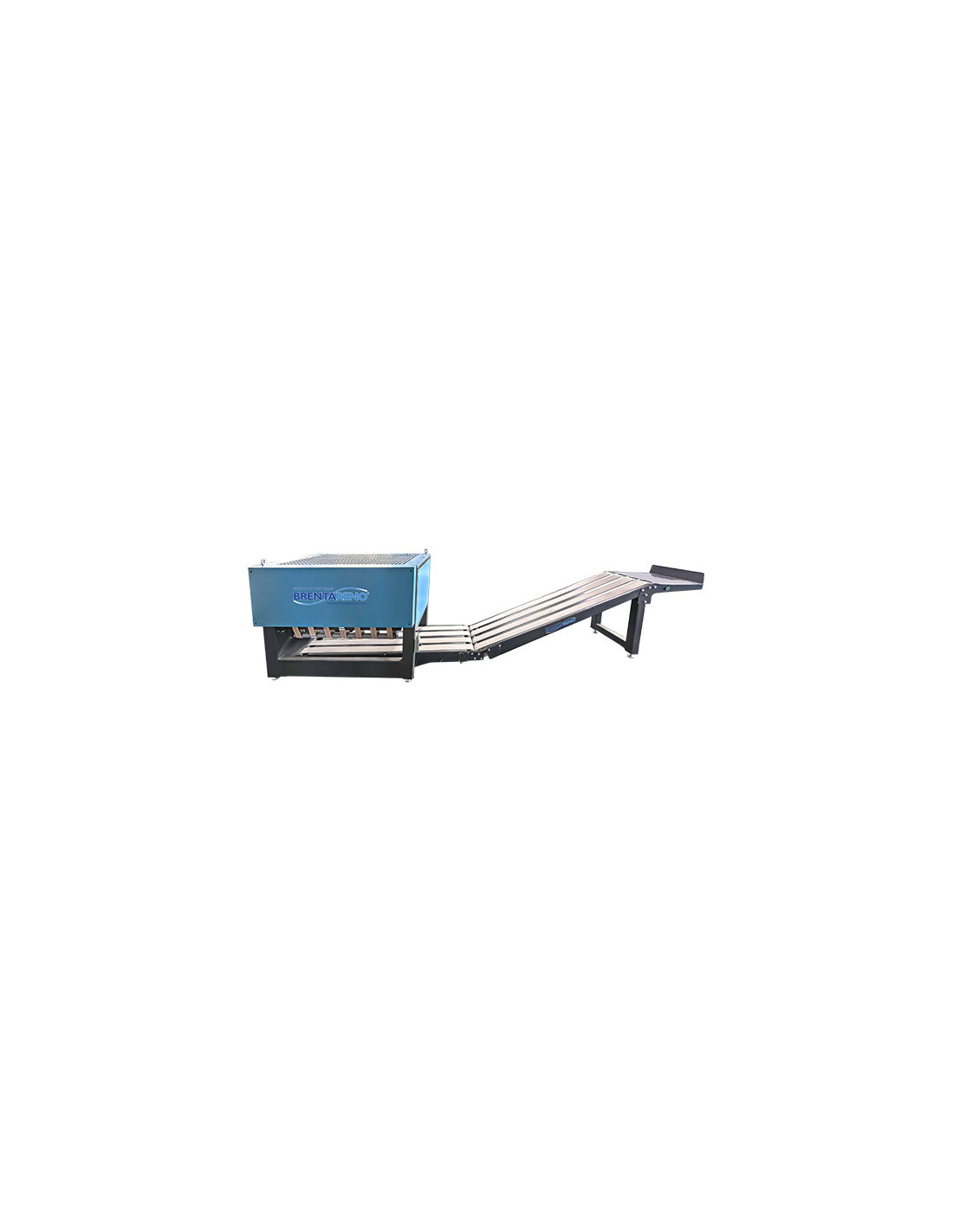

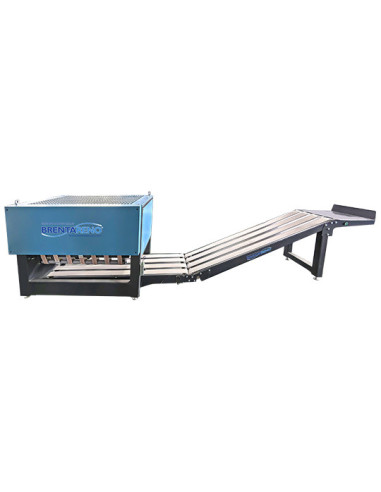

Stacker K-LINE SERIES – CPL STK
Features
- Stacker is a matching equipment to the folder, which counts, stacks and transfers the folded linen. It can be used at any time if needed without site limitation..
- Controlled by computer. Number of stack is set automatically.
- Compact in size and small space taken.
- Driven with belt, it runs smoothly without noise and working surrounding is optimized.
TEHNICAL PARAMETERS
| Model | Unit | CPL STK |
|---|---|---|
| Power Supply | V/HZ/P | 400V – III + N + T (50 Hz) |
| Motor Power | kW | 0.25 |
| Air Pressure | MPa | 0.5 – 0.8 |
| Power of the Motorized Pulley | kW | – |
| Max. Folding Width | mm | 800 |
| Maximum Length of the Field | mm | 300 |
| Maximum Stack Size | mm | 500 x 800 |
| Handling Speed | m/min | 60 |
| Dimensions [L/W/H] | mm | 3,350 x 800 x 990 |
| Weight | Kg | 280 |
