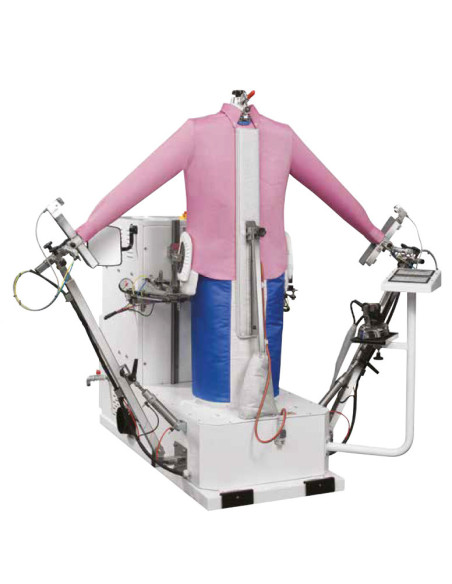

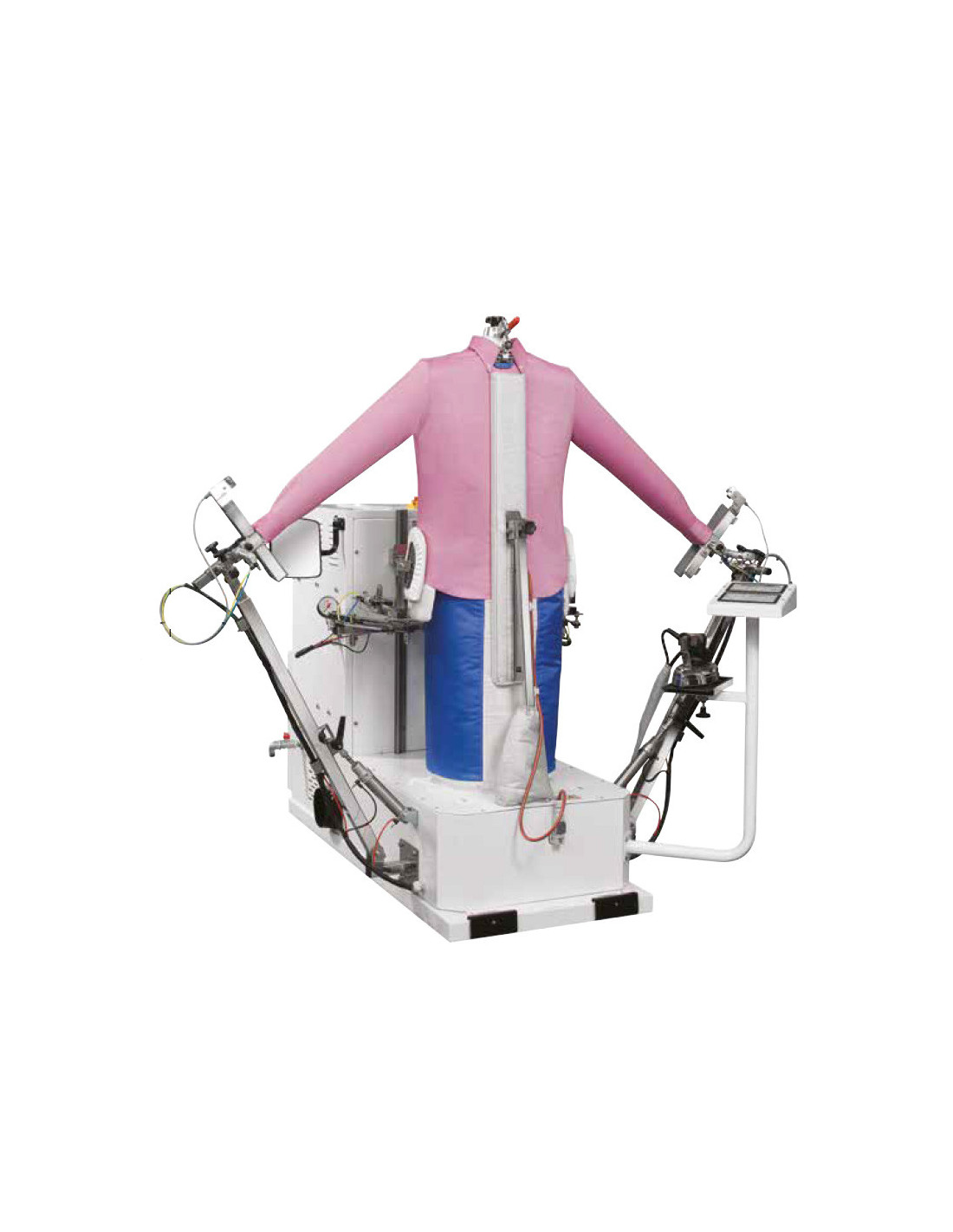

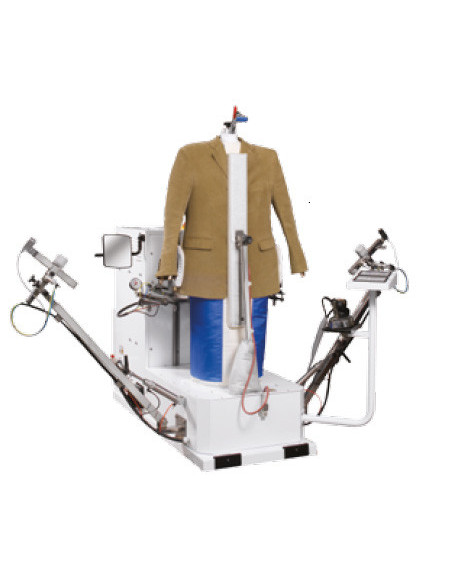

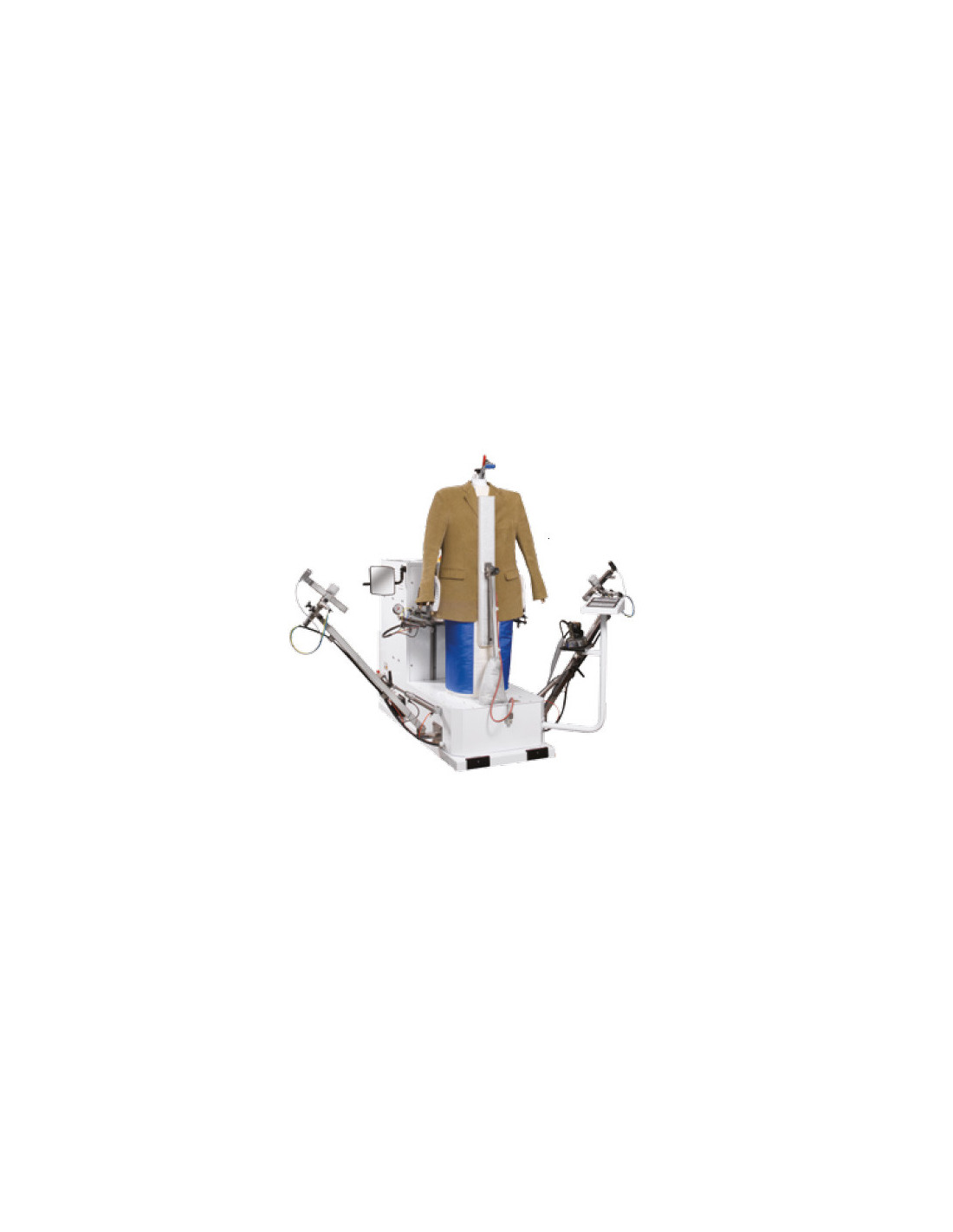

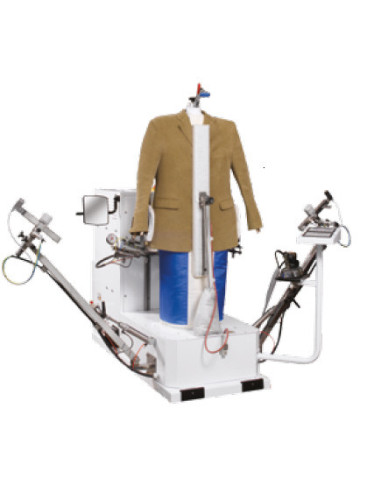

GIOTTTO/A -GIOTTTO/V - Pneumatic steam dummy
GIOTTTO/A -GIOTTTO/V - Pneumatic steam dummy
GIOTTTO/A -GIOTTTO/V - Pneumatic steam dummy
GIOTTTO/A -GIOTTTO/V - Pneumatic steam dummy

GIOTTTO/A -GIOTTTO/V - Pneumatic steam dummy

Pneumatic steam dummy for shirts, jackets and coats



Open cuff

Standard

Control panel

Technical Features

GIOTTO/A
with boiler


GIOTTO/V
without boiler
Boiler power12-15-18 KW
Boiler capacity 10 l.
Vacuum motor power 0,75 HP 0,75 HP
Superheater power2 KW2 KW
Operating steam pressure5 BAR5 BAR (requested)
Operating air pressure6 BAR (requested)6 BAR (requested)
Pump power 0,7 HP
Blowing motor power 3 HP 3 HP
Overall dimensions 180x210x161 H cm180x210x161 H cm
Weight250 kg200 kg
Packing 4,6 m3  4,6 m3
Standard Voltage 400 V+N - 50 Hz  400 V+N - 50 Hz
Upon request220 V - 60 Hz - 3-faze220 V - 60 Hz - 3-faze

  • Especially designed for the finishing of coats, jackets and shirts.
  • It is equipped with heated front paddle as well as cuff clamps opening with photocells.

ACCESSORIES AVAILABLE BY REQUEST

  • Steam gun kit  -  Steam brush kit
  • Condensate discharger (for model Giotto/V)
  • Iron  -  Water spray pistol
  • Hot air battery kit
