DELFINO A/V  -  Pneumatic topper
DELFINO A/V  -  Pneumatic topper

DELFINO A/V - Pneumatic topper

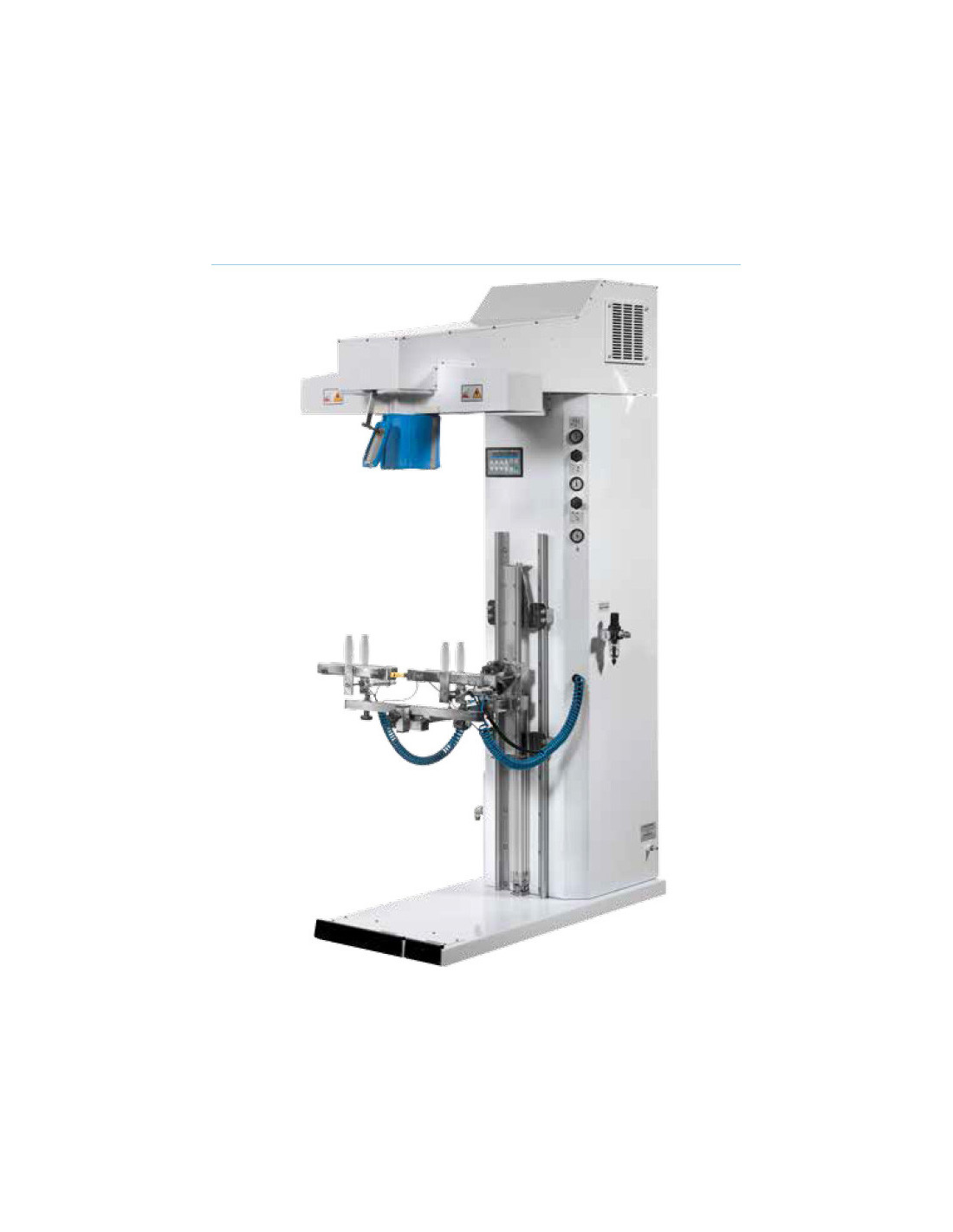

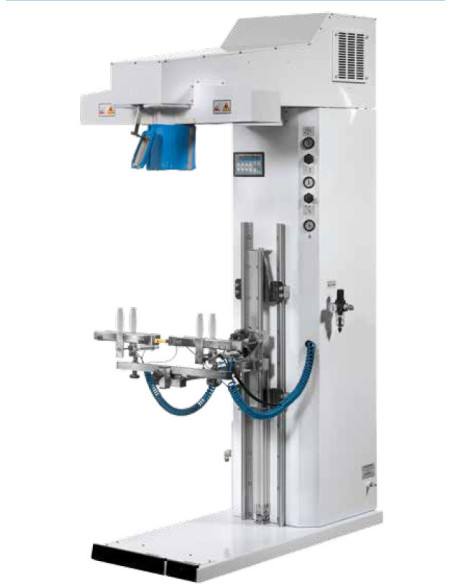

Pneumatic topper with crosswise stretching device with or without boiler



Pocket pressing

Pleat pressing

Control panel

Technical Features DELFINO/A
with boiler
DELFINO/V
without boiler
Snaga kotla12 - 9 - 15 - 18 KW
Boiler power 10 l.
Boiler capacity5 BAR 5 BAR (requested)
Operating steam pressure6 BAR (requested)6 BAR (requested)
Pump power 0,7 HP
Blowing motor power 1,75 HP 1,75 HP
Average steam consumption12/15 kg/h 12/15 kg/h
Superheater 1,2 KW  1,2 KW
Overall dimensions125x60x202 H cm125x60x202 H cm
Weight 290 kg260 kg
Packing 3,4 m33,4 m3
Standard Voltage400 V+N - 50 Hz400 V+N - 50 Hz
Upon request 230 V - 50 Hz 230 V - 50 Hz

  • Especially designed for the finishing of jeans and creaseless casual trousers.
  • Equipped with crosswise stretching device and size indicator, suitable for dyed and washed out fabrics, internal or external tensioning of clamps. Hot air battery and condense water separator Delfino/V.

ACCESSORIES AVAILABLE BY REQUEST

  • Steam brush kit - Hot air battery kit Delfino/V
  • Pocket pressing kit
  • Pleat pressing kit
