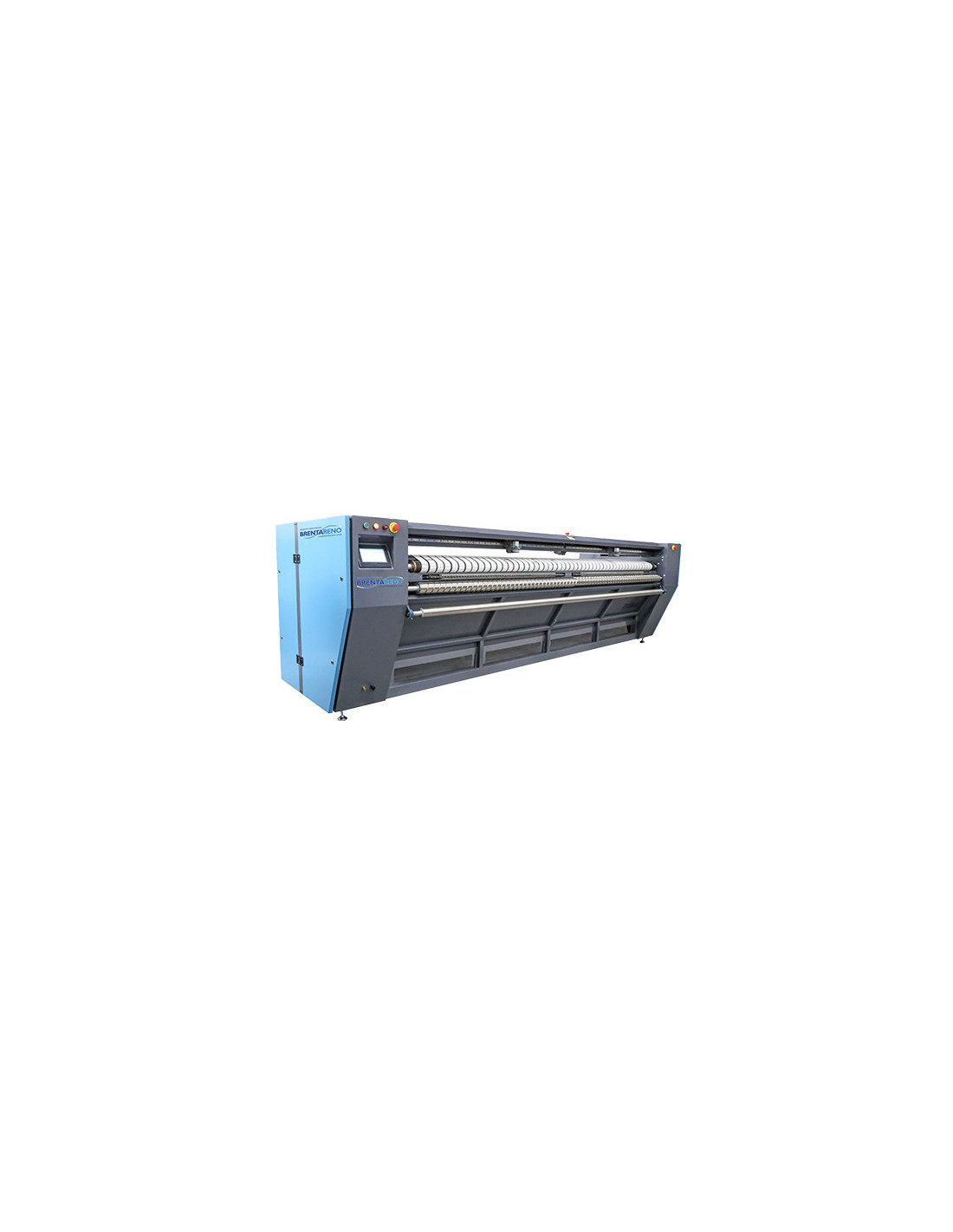

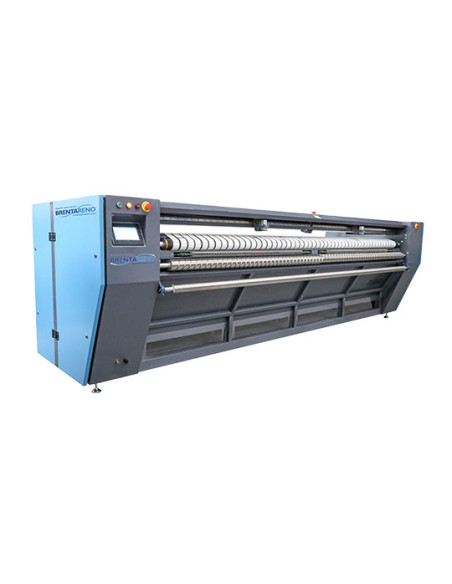

Feeder K-LINE Series – CVF
Features:
- Save operating time, reduce work intensity;
- More safety for the operator;
- Adjustable control system, easy to operate;
- Bottom ventilation structure, with lower noise;
- The machine can be used with all kinds of fabric;
- The machine can be used synchronously with the drying ironer;
- Drawer type filter design for easily clean the fan dust.
TEHNICAL PARAMETERS
| Model | Unit | BZJ-3300 | BZJ-3300 |
|---|---|---|---|
| Maximum width | mm | 3,300 | 3,300 |
| Suction | mm | Present | Present |
| Tensioning brush | / | – | Present |
| Feeding clamps | / | – | Present |
| Feeding speed | m/min | – | 0 – 50 |
| Voltage | V/Hz/Ph | 400V – III + N + T (50 Hz) | 400V – III + N + T (50 Hz) |
| Motor power | KW | 0.37 | 0.37 |
| Fan power | KW | – | 2 x 1.8 |
| Total power | KW | – | 4.72 |
| Weight | T | 1,100 | 1,100 |
| Width | mm | 4,170 | 4,170 |
| Depth | mm | 1,570 | 1,570 |
| Height | mm | 1,770 | 1,770 |
