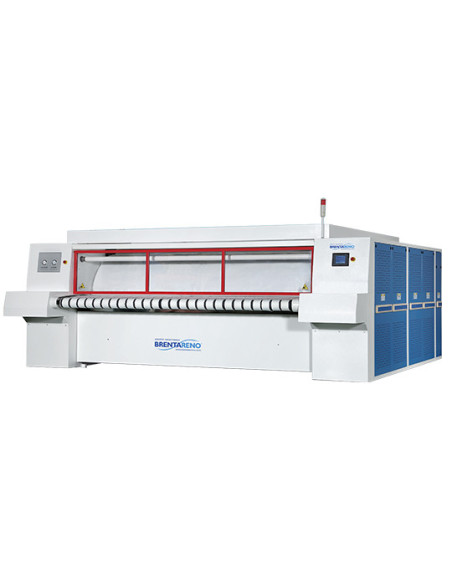

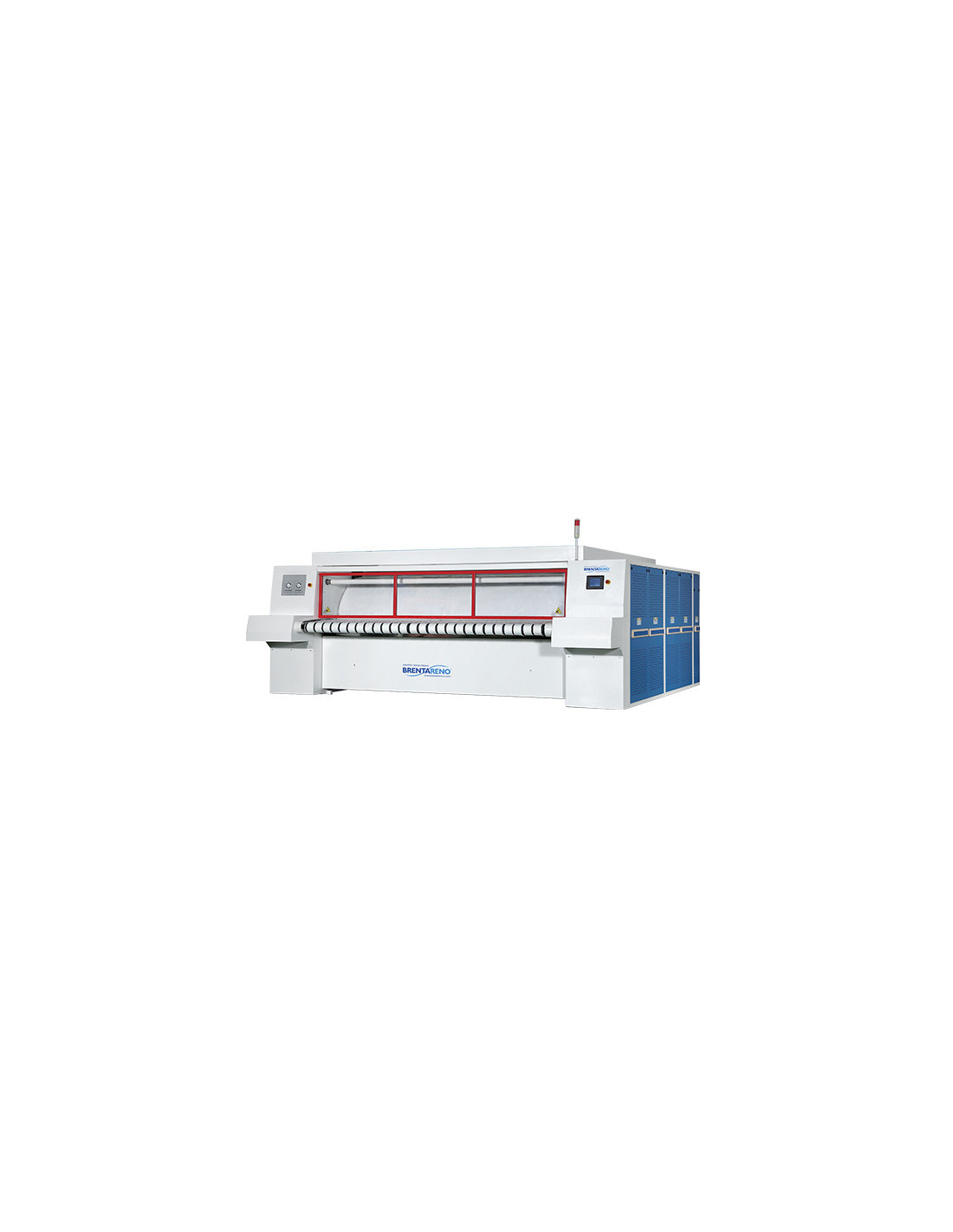

Vapor Chest Calender CH (S) I II III
The calender is characterized by the presence of a roller with a diameter of 800mm, heated internally, which evaporates moisture and simultaneously irons flat linen pressed onto the roller by the ironing bands (belts).
- The calender is characterized by the presence of a roller with a diameter of 800mm, heated internally, which evaporates moisture and simultaneously irons flat linen pressed onto the roller by the ironing bands (belts).
- This equipment adopts frequency conversion for speed regulation, allowing the customer to adjust the speed according to fabric demand to improve ironing efficiency.
- The roller with a diameter of 800mm is made of stainless steel AISI304, and each transfer roller adopts galvanizing technology to extend the machine’s lifespan.
- The large 300-degree roller angle effectively expands the heated work area, improves ironing speed, efficiently utilizes thermal energy, and reduces energy consumption.
- Adoption of motor, reducer, chain transfer, compact structure, reliable and precise transfer.
- An excellent design with different speeds ensures high-quality ironing.
- The chests are made of high-quality steel sheets and have an extra fine polishing to ensure long-lasting padding and belts on the ironer.
- Rigid structures for heavy-duty use, extra fine polished to offer even heat circulation and high evaporation capacity through the wide channels. The mirror finish ensures exceptional ironing results.
TEHNICAL PARAMETERS
| Model | Jedinica | CH 3300 I S | CH 3300 II S | CH 3300 III S | CH 3300 I S |
|---|---|---|---|---|---|
| Rolls number | / | 1 | 2 | 3 | 1 |
| Roll diameter | mm | 800 | 800 | 800 | 1,300 |
| Roll length | mm | 3,300 | 3,300 | 3,300 | 3,300 |
| Calendering speed | m/min | 3 – 8 | 3 – 25 | 3 – 40 | 3 – 25 |
| Vapor pressure | MPa | 0.6 – 10 | 0.6 – 10 | 0.6 – 10 | 0.6 – 10 |
| Extractor power | kW | 1.5 | 2 x 1.5 | 3 x 1.5 | 1.5 |
| Total power | kW | 4.9 | 9.8 | 14.3 | 11.5 |
| Motor power | kW | 3 | 2 x 3 | 3 x 3 | 9.2 |
| Voltage | V/Hz/Ph | 400V – III + N + T (50 Hz) | 400V – III + N + T (50 Hz) | 400V – III + N + T (50 Hz) | 400V – III + N + T (50 Hz) |
| Width | mm | 4,630 | 4,630 | 4,630 | 4,870 |
| Depth | mm | 2,360 | 3,510 | 4,660 | 2,900 |
| Height | mm | 1,900 | 1,900 | 1,900 | 2,250 |
| Weight | Kg | 3,800 | 7,800 | 9,850 | 6,150 |
| Model | Jedinica | CH 3000 II S | CH 3300 III S |
|---|---|---|---|
| Rolls number | / | 2 | 3 |
| Roll diameter | mm | 1,300 | 1,300 |
| Roll length | mm | 3,300 | 3,300 |
| Calendering speed | m/min | 3 – 45 | 5 – 50 |
| Vapor pressure | MPa | 0.6 – 10 | 0.6 – 10 |
| Extractor power | kW | 2 x 1.5 | 3 x 1.5 |
| Total power | kW | 22.9 | 33.6 |
| Motor power | kW | 2 x 9.2 | 3 x 9.2 |
| Voltage | V/Hz/Ph | 400V – III + N + T (50 Hz) | 400V – III + N + T (50 Hz) |
| Width | mm | 4,870 | 4,870 |
| Depth | mm | 4,550 | 6,250 |
| Height | mm | 2,250 | 2,250 |
| Weight | Kg | 12,250 | 17,500 |
