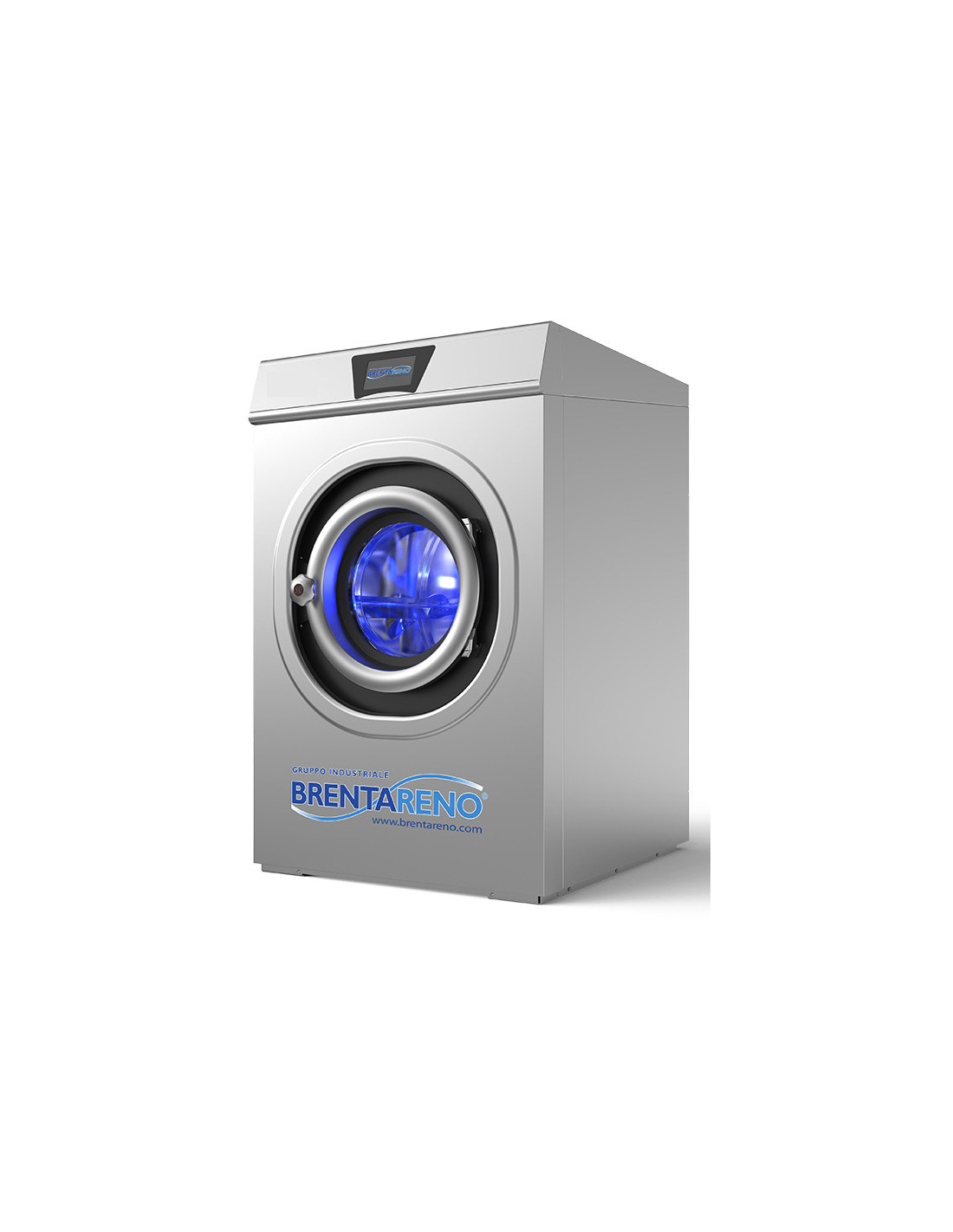

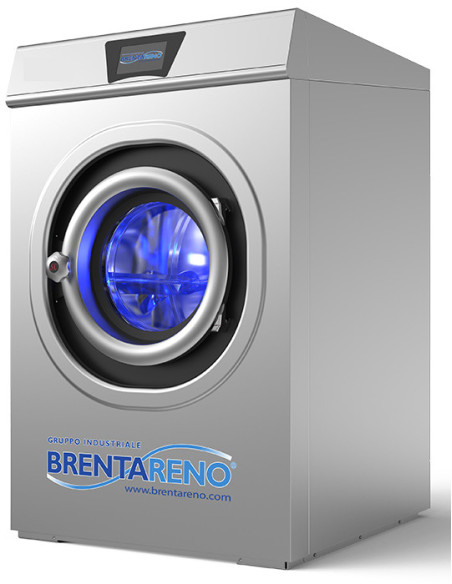

Low Speed Washing Machines CBL Series
INDUSTRIAL series Washer-extractors are suitable for hospitals, community, labour camps, army, prisons, hotels, restaurants, textile industry as well as individual washing-dyeing industry and any other facility with relevant volumes of garments and linen to wash. The INDUSTRIAL series Washer-extractors are used to wash cotton, wool, synthetic fibers and any other kind of fabric.
TEHNICAL PARAMETERS
| Model | Unit | CBL 12 | CBL 16 |
|---|---|---|---|
| Capacity | kg | 12 | 16 |
| Drum volume | lt | 116 | 148 |
| Drum Size | mm | Ø 635×365 | Ø 635×465 |
| Wash Speed | rpm | 32 | 32 |
| Mid Speed | rpm | – | – |
| Spin Speed | mm | 750 | 750 |
| G Factor | G | 204 | 204 |
| Motor Power | kW | 1.85 | 2.2 |
| Heating | kW | 2×4 | 3×4 |
| Inverter | kW | 2.2 | 2.2 |
| Electric connection | – | 400V – III + N + T | 400V – III + N + T |
| Heating | – | Topla voda/struja | Topla voda/struja |
| Water Diameter inlet | DN | 3/4″ | 3/4″ |
| Drain Diameter | Inch | 3” | 3” |
| Dimensions | mm | 798 x 911 x 1297 | 798 x 1011 x 1297 |
| Net Weight | kg | 257 | 272 |
| Packaging | mm | 948 x 1061 x 1447 | 948 x 1161 x 1447 |
| Gross weight | kg | 287 | 302 |
| Model | Unit | CBL 22 | CBL 25 |
|---|---|---|---|
| Capacity | kg | 22 | 25 |
| Drum volume | lt | 194 | 237 |
| Drum Size | mm | Ø 740×450 | Ø 740×450 |
| Wash Speed | rpm | 32 | 32 |
| Mid Speed | rpm | – | – |
| Spin Speed | mm | 700 | 700 |
| G Factor | G | 207 | 207 |
| Motor Power | kW | 1.85 | 3 |
| Heating | kW | 4×4 | 5×4 |
| Inverter | kW | 2.2 | 3.7 |
| Electric connection | – | 400V – III + N + T | 400V – III + N + T |
| Heating | – | Topla voda/struja | Topla voda/struja |
| Water Diameter inlet | DN | 3/4″ | 3/4″ |
| Drain Diameter | Inch | 3” | 3” |
| Dimensions | mm | 901 x 1029 x 1383 | 901 x 1029 x 1383 |
| Net Weight | kg | 286 | 355 |
| Packaging | mm | 1051 x 1279 x 1533 | 1051 x 1279 x 1533 |
| Gross weight | kg | 316 | 385 |
